Series Y - Diffuse Direct Emission + Batwing Indirect Emission - 3000K - DALI - Black

IP20 Dimmbar:

Downloadable files

3D Model
  • Diffused Direct-Indirect Emission + End Cap + Suspension Kit + Rose x1 Module 3ds.zip
  • Diffused Direct-Indirect Emission + End Cap + Suspension Kit + Rose x1 Module stp.zip
  • Series Y_Accessories.zip
  • Series Y_System Example 3ds.zip
  • Series Y_System Example stp.zip
Silhouette
  • Series Y.jpg
Instructions
  • Y513000943B FOGLIO ISTRUZ SERIES Y.pdf
3D BIM Revit
  • Artemide Series Y.rfa
  • Artemide Series Y_Low Version.zip
IES Europe
  • AY05004.IES
IES USA
  • AY05004.IES
LDT File
  • AY05004.LDT
LDT PDF
  • AY05004.PDF
FUNKTIONEN
  • Produktcode: AY05004
  • Farbe: Black
  • Installation: Pendelleuchte
  • Serie: Architectural Indoor
  • Anwendungsbereich: Innenbeleuchtung
  • design: Gensler
LUMINAIRE
  • Watt: 55W
  • Lichtstrom (lm): 5580lm
  • CCT: 3000K
  • Efficiency: 76%
  • Efficacy: 101.45lm/W
  • CRI: 90
  • Dimmable Typology: Dali

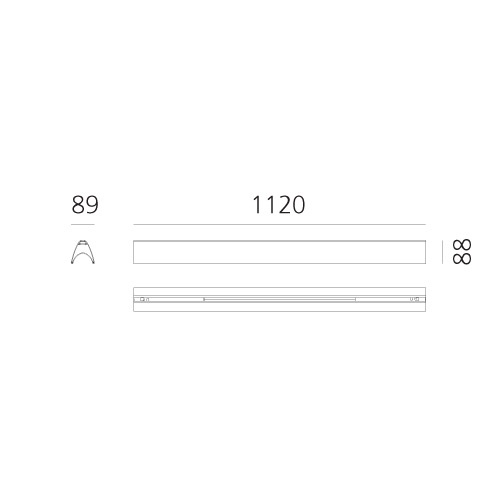

DIMENSION
  • Länge: 1120 mm
  • Breite: 89 mm
  • Höhe: 88 mm
INKLUSIVE LICHTQUELLEN
  • Kategorie: Led
  • Anzahl: 1
  • Watt: 55W
  • Lichtstrom (lm): 3621lm
  • Farbtemperatur(K): 3000K
  • CRI: 90
ZUBEHÖR
Ceiling Rose - x 1 Module - DALI
AY81101
Ceiling Rose - x 2 Module - DALI
AY81201
Ceiling Rose - x 3 Module - Linear Configuration - DALI
AY81301
Ceiling Rose - x 3 Module - Joint Configuration - DALI
AY81401
Ceiling Rose - x 4 Module - Linear Configuration - DALI
AY81501
Suspension Kit
AY50000
Intermediate Suspension Kit
AY51000
End Cap - White
AY60001
End Cap - Black
AY60004
End Cap - Silver
AY60005
Ceiling Rose - x 4 Module - Joint Configuration - DALI
AY81601
Joint - x 2 Modules - Black
AY70004
Joint - x 2 Modules - Silver
AY70005
Joint - x 2 Modules - Red
AY70008
Joint - x 2 Modules - Yellow
AY70015
Joint - x 3 Modules - White
AY71001
Joint - x 3 Modules - Black
AY71004
Joint - x 3 Modules - Silver
AY71005
Joint - x 3 Modules - Red
AY71008
End Cap - Red
AY60008
End Cap - Yellow
AY60015
Joint End Cap - White
AY61001
Joint End Cap - Black
AY61004
Joint End Cap - Silver
AY61005
Joint End Cap - Red
AY61008
Joint End Cap - Yellow
AY61015
Joint - x 2 Modules - White
AY70001
Joint - x 3 Modules - Yellow
AY71015
Joint - x 4 Modules - White
AY72001
Joint - x 4 Modules - Black
AY72004
Joint - x 4 Modules - Silver
AY72005
Joint - x 4 Modules - Red
AY72008
Joint - x 4 Modules - Yellow
AY72015
