Alphabet of Light - Lowercase - Letter b

Downloadable files

2D Model
  • Alphabet of Light_All Letters_2D.zip
3D Model
  • Alphabet of Light_All Letters_3D.zip

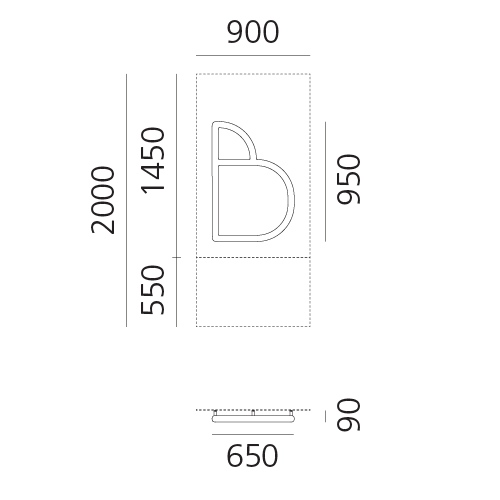

Silhouette
  • AoL sil-b.jpg
Instructions
  • Y513000755B Alphabet con supporto cartone.pdf
  • Y513000790A Alphabet con pannello legno.pdf
  • Y513000818-FOGLIO ISTRUZ-ALPHABET C-SUPP.AGGIUNTIVO.pdf
DiaLux ULD File
  • Alphabet of Light_All Letters_ULD.zip
IES Europe
  • 1202b00A.IES
IES USA
  • 1202b00A.IES
LDT File
  • 1202b00A.LDT
LDT PDF
  • 1202B00A.PDF
FUNKTIONEN
  • Produktcode: 1202b00A
  • Farbe: White
  • Installation: Wandleuchte
  • Material: Halterung aus Aluminium, diffusionselement aus opalenem technopolymer.
  • Serie: Design Collection, Architectural Indoor
  • Anwendungsbereich: Innenbeleuchtung
  • Lichtverteilung: Direct/indirect
  • design: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 26W
  • Lichtstrom (lm): 2295lm
  • CCT: 3000K
  • Efficiency: 88%
  • Efficacy: 88.28lm/W
  • CRI: 80
DIMENSION
  • Länge: 650 mm
  • Höhe: 950 mm
INKLUSIVE LICHTQUELLEN
  • Kategorie: Led
  • Anzahl: 1
  • CRI: 80
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70 (6K) = 36000h
ZUBEHÖR
Alphabet of Light - Lowercase - Support Letter b
1212b00A
Driver CV 75W 24Vdc Selv - 220-240 Vac - 180x52x30 (LxWxH) - up to 65W - Undimmable
DV1009
