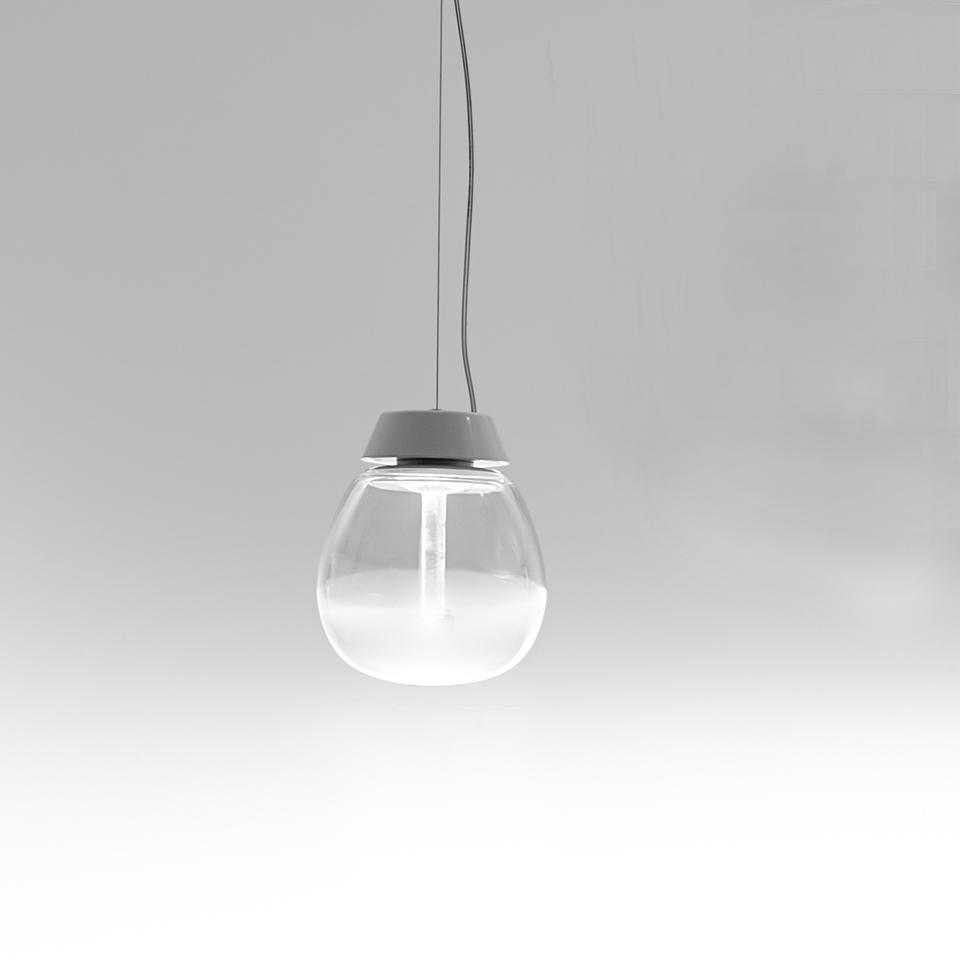

Empatia 16 Suspension

IP20

Downloadable files

2D Model
  • Empatia Sospensione_2D.dwg
  • Empatia Sospensione_2D.dxf
3D Model
  • Empatia 16 Sospensione_3D.3ds
  • Empatia 16 Sospensione_3D.stp
Silhouette
  • Empatia 36_Silhouette
Instructions
  • Y513000189E--FOGLIO ISTRUZIONI EMPATIA SOSP.16-26-36.pdf
IES Europe
  • 1815010A.IES
IES USA
  • 1815010A.IES
LDT File
  • 1815010A.LDT
LDT PDF
  • 1815010A.PDF
FEATURES
  • Product Code: 1815010A
  • Colour: White
  • Installation: Suspension
  • Material: Blown glass, methacrylate, aluminum
  • Series: Design Collection
  • design by: Carlotta de Bevilacqua, Paola di Arianello
LUMINAIRE
  • Watt: 11W
  • Voltage: 220-240V
  • Delivered lumen output: 567lm
  • CCT: 3000K
  • Efficiency: 55%
  • Efficacy: 51.55lm/W
  • CRI: 90
DIMENSIONS
  • Height: 190 mm
  • Diameter: 160 mm
  • Base Length: 500 mm
  • Max Height from ceiling: 2000 mm
  • Glow Wire Test: 650°C
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 11W
  • Delivered lumen output: 1380lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: 2SDCM
AWARDS

2014 Wallpaper Design Awards 2014 iF Product Design Award

Download all Data sheet PDF
