Ego 150 glass walk-over 9° 3000K Square

IP 65/67

Downloadable files

3D Model
  • Ego 150 Glass Walk-Over Square.3ds
  • Ego 150 Glass Walk-Over Square.stp
Silhouette
  • Ego 150 vetro WO.jpg
Instructions
  • Istruzioni_montaggio
  • Istruzioni_montaggio_cassaforma
IES Europe
  • T4100NSPW00.IES
IES USA
  • T4100NSPW00.IES
LDT File
  • T4100NSPW00.LDT
LDT PDF
  • T4100NSPW00.PDF
FEATURES
  • Product Code: T4100NSPW00
  • Series: Architectural Outdoor
  • design by: Studio Artemide
LUMINAIRE
  • Power Supply: Integrated electronic ballast
  • Watt: 8W
  • Delivered lumen output: 666lm
  • CCT: 3000K
  • Efficiency: 82%
  • Efficacy: 83.29lm/W
  • CRI: 80

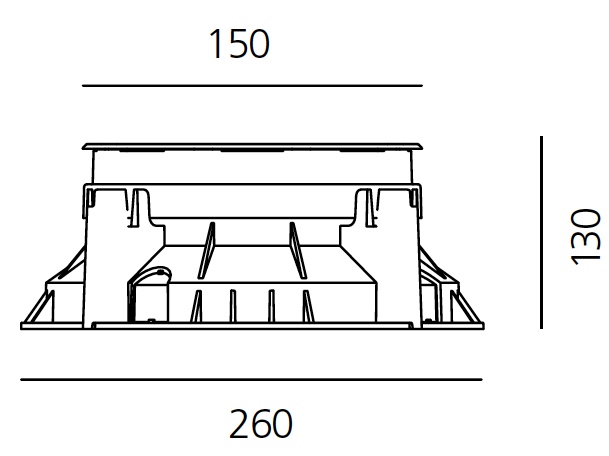

DIMENSIONS
  • Diameter: 150 mm
  • Base Length: 260 mm
  • Base Width: 260 mm
  • Recessed depth: 130 mm
  • Cutout shape: Squared
  • Impact Resistance: IK09
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 8W
  • Wattage (Single): 2W
  • Delivered lumen output: 382lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Color Tolerance: MacAdam 4SDCM
  • Efficacy: 64lm/W
  • Service Life: L70(10K) > 60500h
Notes

Flood opticWide luminous flow suitable for lighting large areas.

Accessories
Square Recessing Box
T409914
Download all Data sheet PDF
