Tetragono Wall - 3000K

IP65

Downloadable files

3D Model
  • Tetragono Wall.3ds
  • Tetragono Wall.stp
Silhouette
  • Tetragono Wall.jpg
Instructions
  • Y513000168_B_FOGLIO ISTRUZ. TETRAGONO PTE.pdf
DiaLux ULD File
  • T417300W00.uld
IES Europe
  • T417300W00.IES
IES USA
  • T417300W00.IES
LDT File
  • T417300W00.LDT
LDT PDF
  • T417300W00.PDF
FEATURES
  • Product Code: T417300W00
  • Colour: Grey antracite
  • Installation: Wall
  • Material: Aluminum, polycarbonate
  • Series: Architectural Outdoor
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 15W
  • Voltage: 220V-240V
  • Delivered lumen output: 481lm
  • CCT: 3000K
  • Efficiency: 34%
  • Efficacy: 32.07lm/W
  • CRI: 90

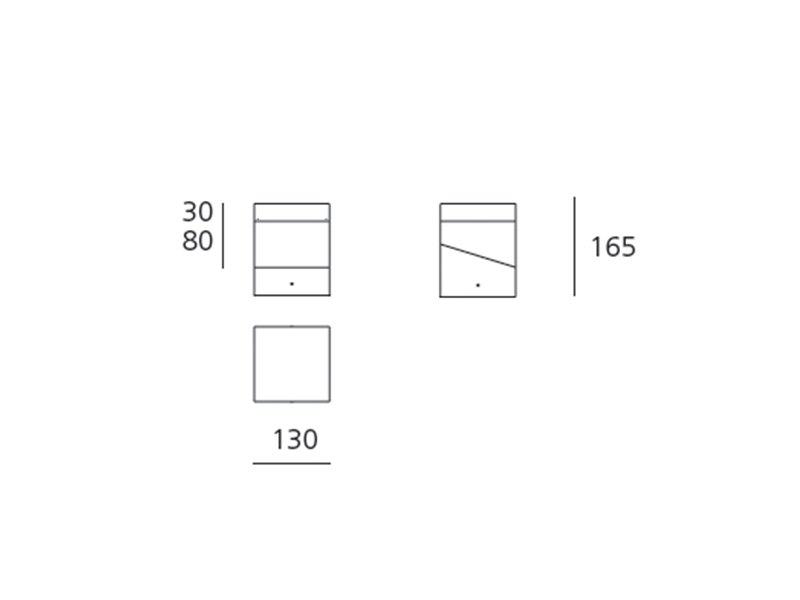

DIMENSIONS
  • Length: 130 mm
  • Width: 130 mm
  • Height: 165 mm
  • Impact Resistance: IK10
  • Glow Wire Test: 650°
Download all Data sheet PDF
