Chlorophilia - App Compatible

IP20

Downloadable files

2D Model
  • Chlorophilia_2D.dwg
  • Chlorophilia_2D.dxf
3D Model
  • Chlorophilia_3D.3ds
  • Chlorophilia_3D.stp
Silhouette
  • Chlorophilia_Silhouette
Instructions
  • Y513000411C F_IS CHLOROPHILIA.pdf
  • Y513001035A-Artemide APP.pdf
IES Europe
  • 1628010APP.IES
IES USA
  • 1628010APP.IES
LDT File
  • 1628010APP.LDT
LDT PDF
  • 1628010APP.PDF
FEATURES
  • Product Code: 1628010app
  • Colour: Chrome
  • Installation: Suspension
  • Material: Methacrylate, technopolymer, aluminum
  • Series: Design Collection
  • design by: Ross Lovegrove
LUMINAIRE
  • Watt: 44W
  • Voltage: 220-240V
  • Delivered lumen output: 3146lm
  • CCT: 3000K
  • Efficiency: 81%
  • Efficacy: 71.5lm/W
  • CRI: 90

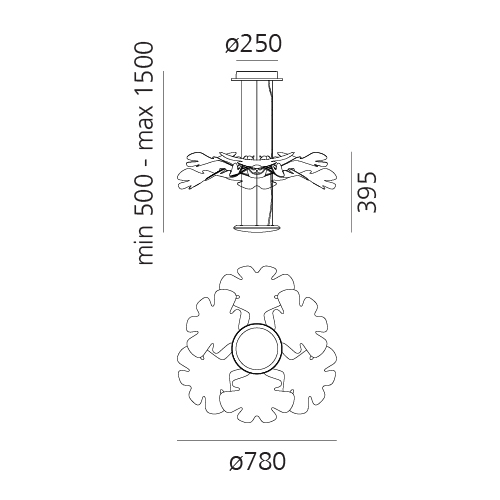

DIMENSIONS
  • Diameter: 780 mm
  • Base Diameter: 250 mm
  • Max Height from ceiling: 1500 mm
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 37W
  • Delivered lumen output: 3899lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 107lm/W
  • Service Life: 50000-L70
Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
