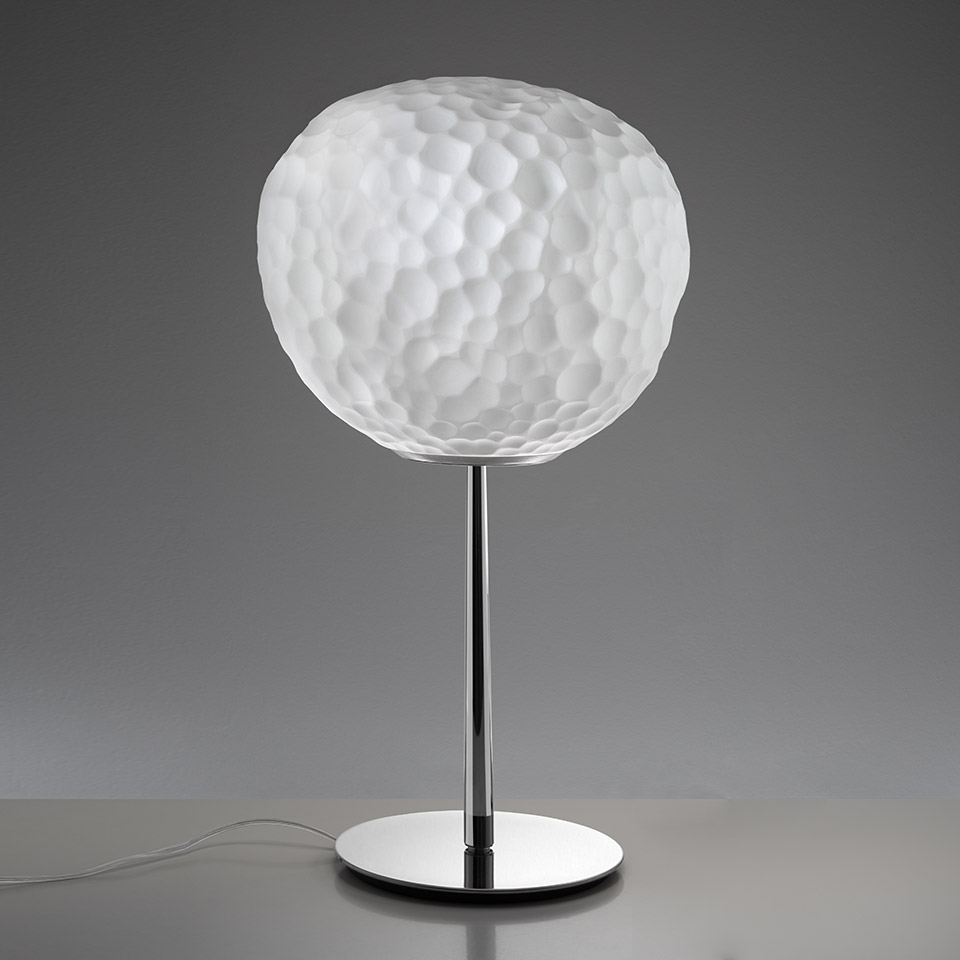

Meteorite 35 Table Stem

IP20

Downloadable files

2D Model
  • Meteorite Stelo35.dwg
  • Meteorite Stelo35.dxf
3D Model
  • Meteorite Stelo35.3ds
  • Meteorite Stelo35.stp
Silhouette
  • Meteorite 35 Stelo.jpg
Instructions
  • Y513000572B F_IS METEORITE 35 STEM TABLE.pdf
IES Europe
  • 1705010A.IES
IES USA
  • 1705010A.IES
LDT File
  • 1705010A.LDT
LDT PDF
  • 1705010A.PDF
FEATURES
  • Product Code: 1705010A
  • Colour: white
  • Installation: Table
  • Material: Steel base and rod, technopolymer support, blown frosted glass diffuser with acid-etching treatment
  • Series: Design Collection
  • design by: Pio & Tito Toso
LUMINAIRE *
  • Watt: 21W
  • Voltage: 220V - 240V
  • Delivered lumen output: 1760lm
  • Efficiency: 72%
  • Efficacy: 83.81lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

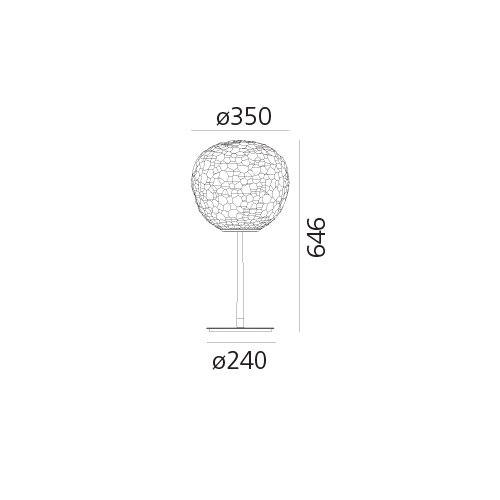

DIMENSIONS
  • Height: 646 mm
  • Diameter: 350 mm
  • Base Diameter: 240 mm
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: 12W
  • Socket: E27
Download all Data sheet PDF
