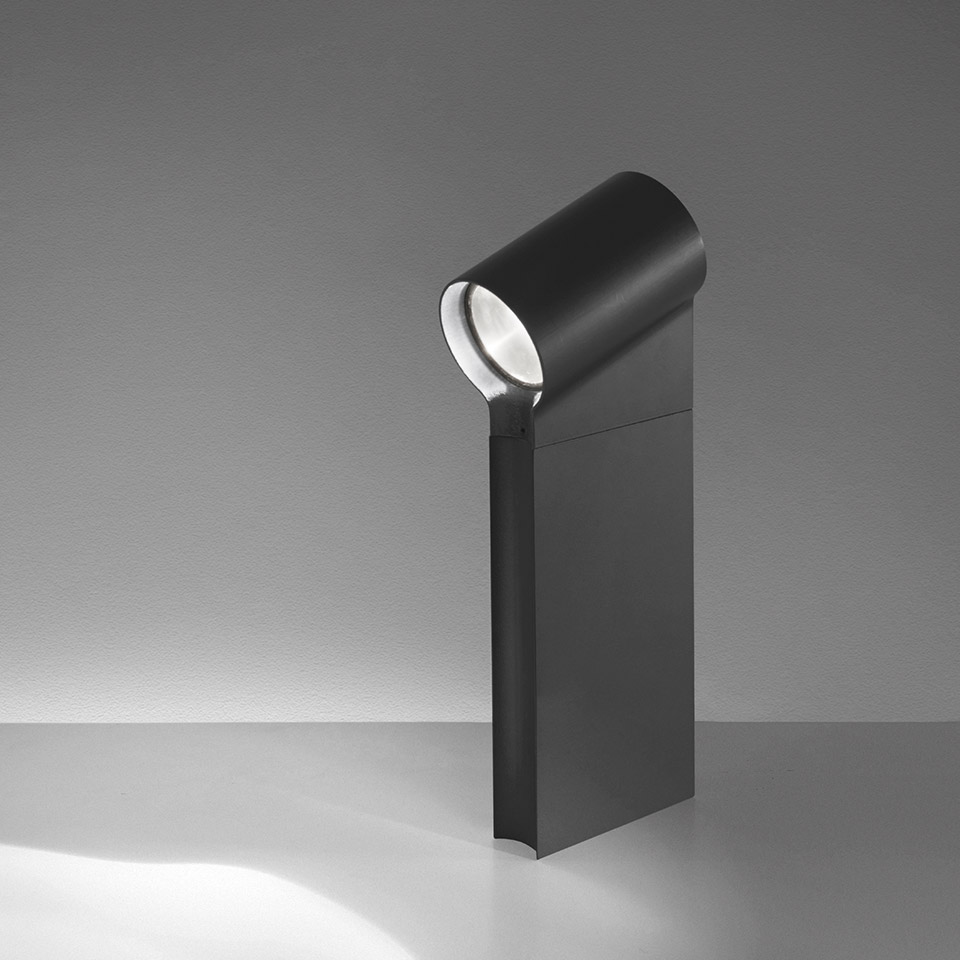

Oblique Bollard 75

IP65

Downloadable files

3D Model
  • Oblique Bollard 75.3ds
  • Oblique Bollard 75.stp
Silhouette
  • Oblique-Bollard-75.jpg
Instructions
  • Y513000475C-Oblique 450-750.pdf
IES Europe
  • T086300.IES
IES USA
  • T086300.IES
LDT File
  • T086300.LDT
LDT PDF
  • T086300.PDF
FEATURES
  • Product Code: T086300
  • Colour: Anthracite grey
  • Installation: Bollard
  • Material: Aluminum
  • Series: Architectural Outdoor
  • design by: Arik Levy
LUMINAIRE
  • Watt: 23W
  • Delivered lumen output: 1263lm
  • CCT: 3000K
  • Efficiency: 46%
  • Efficacy: 54.91lm/W
  • CRI: 90

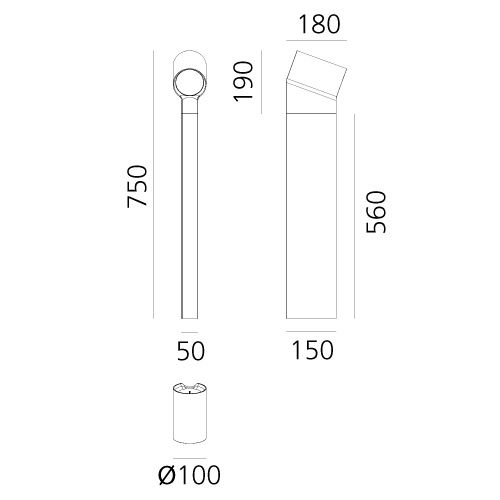

DIMENSIONS
  • Height: 750 mm
  • Diameter: 100 mm
  • Weight: kg 4
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 15W
  • Delivered lumen output: 750lm
  • Color temperature (K): 3000K
  • CRI: 80
Download all Data sheet PDF
