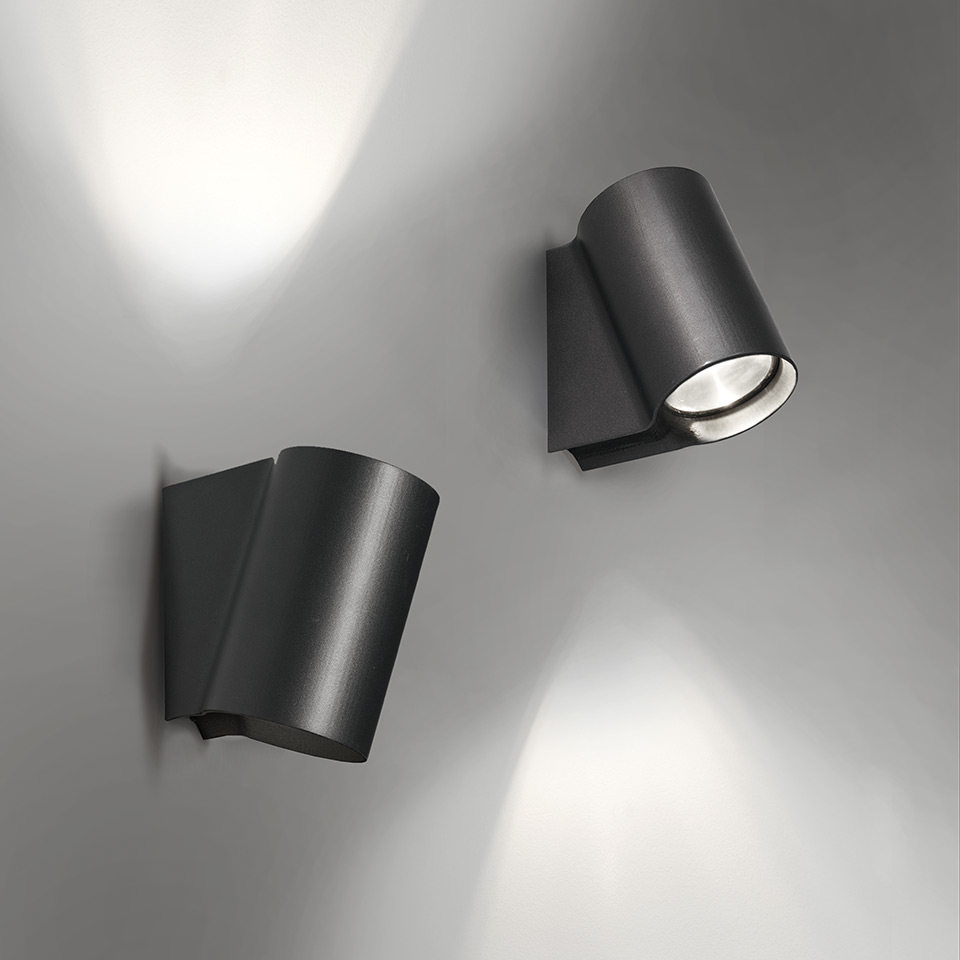

Oblique Wall - Anthracite gray

IP65

Downloadable files

2D Model
  • Oblique wall.dwg
  • Oblique wall.dxf
3D Model
  • Oblique Wall.3ds
  • Oblique Wall.stp
Silhouette
  • Oblique-Wall.jpg
Instructions
  • Y513000474D-Oblique.pdf
IES Europe
  • T086000+T086400.IES
  • T086000+T086500.IES
  • T086000.IES
IES USA
  • T086000+T086400.IES
  • T086000+T086500.IES
  • T086000.IES
LDT File
  • T086000+T086400.LDT
  • T086000+T086500.LDT
  • T086000.LDT
LDT PDF
  • T086000+T086400.PDF
  • T086000+T086500.PDF
  • T086000.PDF
FEATURES
  • Product Code: T086000
  • Colour: Anthracite grey
  • Installation: Wall
  • Material: Aluminum
  • Series: Architectural Outdoor
  • design by: Arik Levy
LUMINAIRE
  • Watt: 23W
  • Delivered lumen output: 1263lm
  • CCT: 3000K
  • Efficiency: 46%
  • Efficacy: 54.91lm/W
  • CRI: 90
DIMENSIONS
  • Height: 180 mm
  • Diameter: 100 mm
  • Max Extension Height: 180 mm
  • Weight: kg 2
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 20W
  • Color temperature (K): 3000K
Accessories
Oblique - picchetto di fissaggio al terreno
T086500
Oblique - palo
T086400
