Surf System Led - Dimmable DALI - 4000K - White
IP20
Dimmerable:
Dimmerable:
Downloadable files
FEATURES
- Product Code: BD01101
- Colour: White
- Installation: Wall, Suspension
- Material: Extruded Aluminium
- Series: Architectural Indoor
- Environment: Indoor
- Area contract: Hospitality, null, Retail, Office
- Emission: Indirect
- design by: Neil Poulton
LUMINAIRE
- Watt: 53W
- Voltage: 220V-240V
- Delivered lumen output: 6544lm
- CCT: 4000K
- Efficiency: 83%
- Efficacy: 123.47lm/W
- CRI: 80
- Dimmable Typology: Dali

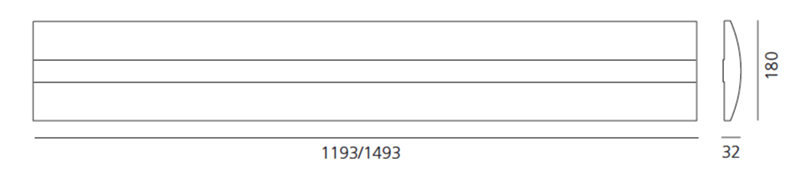

DIMENSIONS
- Length: 1190 mm
- Width: 180 mm
- Height: 32 mm
- Weight: kg 5.1
- Glow Wire Test: 960°
SOURCES INCLUDED
- Category: Led
- Number: 1
- Watt: 65W
- Color temperature (K): 4000K
Notes
Accessories
SURF TERMINALE BCO
M090220
M090220
SURF SYSTEM - Wall fixing with power supply. (3/5 poles). 0,20kg. 55x90mm. Protusion 50 mm. White
M090920
M090920
SURF ATTACCO A PARETE BCO
M090820
M090820
INTERACTIVE-DALI kit Ø86mm, white, recessed. Can be connected to a max. 11 DALI dimmable units. Is operated through INTERACTIVE-DALI remote control or external push button.
M074030
M074030
.SURF ELEMENT DE JONCTION T BLC
M090420
M090420
SURF SOSPENS. ALIM.5 POLI BCO
M091820
M091820
SURF GIUNTO 90° BCO
M090320
M090320
SURF BASETTA SOSP.BCO
M090620
M090620
INTERACTIVE-DALI remote control.
M104900
M104900
SURF ELEMENT DE JONCTION + BLC
M090520
M090520
Extension movement detector white, recessed. To be used when the area to be covered is bigger than 6,00x5,00m by height 2,50m. To be connected to one of the outputs of the INTERACTIVE-DALI controller. No extra mains connection required.
M074130
M074130
SURF BASETTA SOSP.ALIM.BCO
M090720
M090720
