Altrove 600 Wall/ceiling LED

IP20 Dimmerable:

Downloadable files

2D Model
  • Altrove600 Parete/Soffitto_2D.dwg
  • Altrove600 Parete/Soffitto_2D.dxf
Silhouette
  • Altrove-600.jpg
Instructions
  • Y513000785--FOGLIO ISTRUZ. ALTROVE 600 LED C-W.pdf
IES Europe
  • 1538110A.IES
IES USA
  • 1538110A.IES
LDT File
  • 1538110A.LDT
LDT PDF
  • 1538110A.PDF
FEATURES
  • Product Code: 1538110A
  • Colour: Aluminium
  • Installation: Wall, Ceiling
  • Material: Methacrylate, aluminium
  • Series: Design Collection
  • Environment: Indoor
  • design by: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 76W
  • Delivered lumen output: 3822lm
  • CCT: 3000K
  • Efficiency: 37%
  • Efficacy: 50.29lm/W
  • CRI: 90
  • Dimmable Typology: Push

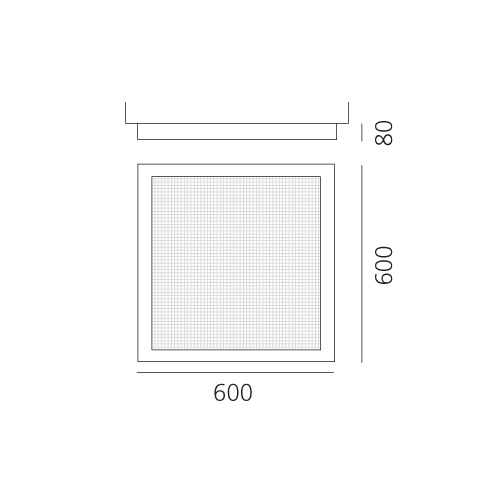

DIMENSIONS
  • Length: 600 mm
  • Width: 600 mm
  • Height: 80 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 4
  • Watt: 16.8W
  • Delivered lumen output: 3024lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 180lm/W
  • Service Life: 50000-L70
