Ilio - White - 3000K - App Compatible

IP20 Dimmerable:

Downloadable files

2D Model
  • Ilio_2D.dwg
  • Ilio_2D.dxf
3D Model
  • Ilio_3D.3ds
  • Ilio_3D.stp
Silhouette
  • Ilio_Silhouette
Instructions
  • Y513001035A-Artemide APP.pdf
  • Y513001086C F_IS ILIO APP EU-USA.pdf
IES Europe
  • 1640020APP.IES
IES USA
  • 1640020APP.IES
LDT File
  • 1640020APP.LDT
LDT PDF
  • 1640020APP.PDF
FEATURES
  • Product Code: 1640020APP
  • Colour: White
  • Installation: Floor
  • Material: Aluminium, steel
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Residential
  • Emission: Indirect
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 45W
  • Voltage: 220-240V
  • Delivered lumen output: 3564lm
  • CCT: 3000K
  • Efficiency: 88%
  • Efficacy: 79.2lm/W
  • CRI: 90
  • Dimmer Typology: Microswitch Dimmer

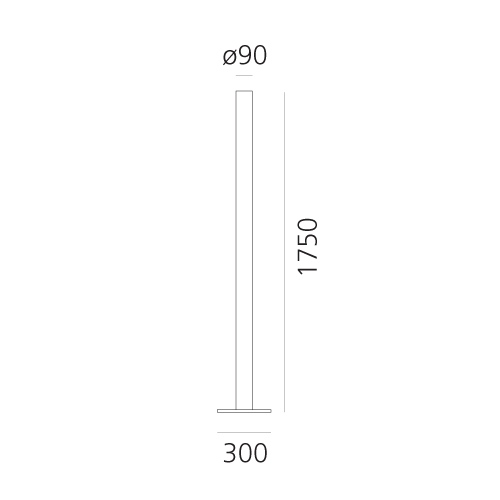

DIMENSIONS
  • Height: 1750 mm
  • Diameter: 90 mm
  • Base Length: 300 mm
  • Base Width: 300 mm
  • Impact Resistance: N.D.
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 37W
  • Delivered lumen output: 3899lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 107lm/W
  • Service Life: 50000-L70
Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
