Led Net Line 125 - Ceiling - App Compatible

IP20

Downloadable files

2D Model
  • LedNet 125 Soffitto_2D.dwg
  • LedNet 125 Soffitto_2D.dxf
3D Model
  • LedNet 125 Soffitto_3D.3ds
  • LedNet 125 Soffitto_3D.stp

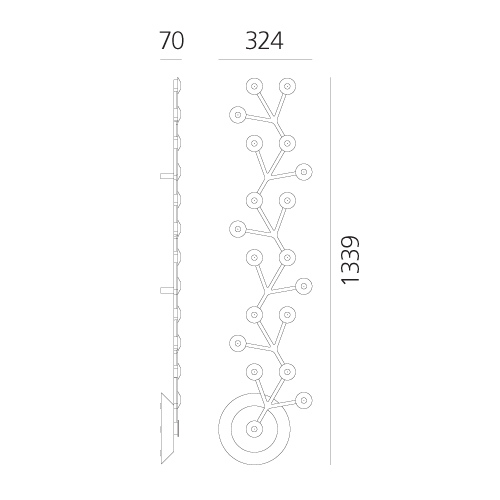

Silhouette
  • LedNet 125 Soffitto_Silhouette.jpg
Instructions
  • Y513000204B F ISTR LED NET LINEARE SOSP PLAF.pdf
  • Y513001035A-Artemide APP.pdf
DiaLux ULD File
  • 1596050A.uld
IES Europe
  • 1596050APP.IES
IES USA
  • 1596050APP.IES
LDT File
  • 1596050APP.LDT
LDT PDF
  • 1596050APP.PDF
FEATURES
  • Product Code: 1596050APP
  • Colour: Polished white
  • Installation: Ceiling
  • Material: Aluminium, methacrylate
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, null
  • Emission: Direct
  • design by: Michele De Lucchi, Alberto Nason
LUMINAIRE
  • Watt: 45W
  • Voltage: 220-240V
  • Delivered lumen output: 2530lm
  • CCT: 3000K
  • Efficiency: 78%
  • Efficacy: 56.22lm/W
  • CRI: 80
DIMENSIONS
  • Length: 1400 mm
  • Width: 324 mm
  • Height: 70 mm
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 18
  • Watt: 2.17W
  • Delivered lumen output: 153lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 71lm/W
  • Service Life: 50000-L70
Notes

LEDs included.

Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
