Led Net Line 125 - Suspension - App Compatible

IP20

Downloadable files

2D Model
  • LedNet 125 Sospensione_2D.dwg
  • LedNet 125 Sospensione_2D.dxf
3D Model
  • LedNet 125 Sospensione_3D.3ds
  • LedNet 125 Sospensione_3D.stp

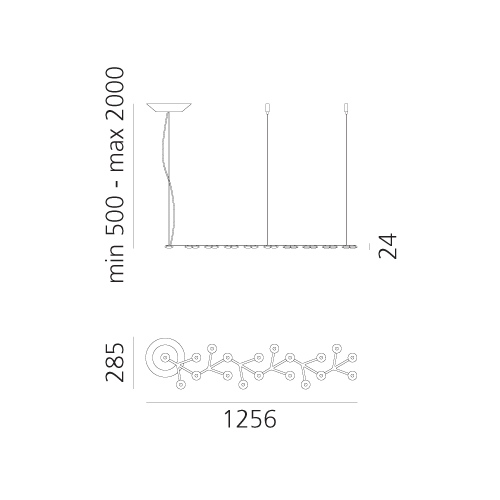

Silhouette
  • LedNet 125 Sospensione_Silhouette
Instructions
  • Y513000204B F ISTR LED NET LINEARE SOSP PLAF.pdf
  • Y513001035A-Artemide APP.pdf
IES Europe
  • 1578050APP.IES
IES USA
  • 1578050APP.IES
LDT File
  • 1578050APP.LDT
LDT PDF
  • 1578050APP.PDF
FEATURES
  • Product Code: 1578050APP
  • Colour: Polished white
  • Installation: Suspension
  • Material: Aluminium, methacrylate
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, null
  • Emission: Direct
  • design by: Michele De Lucchi, Alberto Nason
LUMINAIRE
  • Watt: 45W
  • Voltage: 220-240V
  • Delivered lumen output: 2530lm
  • CCT: 3000K
  • Efficiency: 78%
  • Efficacy: 56.22lm/W
  • CRI: 80
DIMENSIONS
  • Length: 1250 mm
  • Width: 285 mm
  • Height: 24 mm
  • Max Height from ceiling: 2000 mm
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 18
  • Watt: 2.17W
  • Delivered lumen output: 153lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Color Tolerance: MacAdam 3SDCM
  • Efficacy: 71lm/W
  • Service Life: 50000-L70
Notes

It’s a sectional unit that enables elements to be added (supplied as special project).

Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
