Antarktikós - RGB Light

IP65

Downloadable files

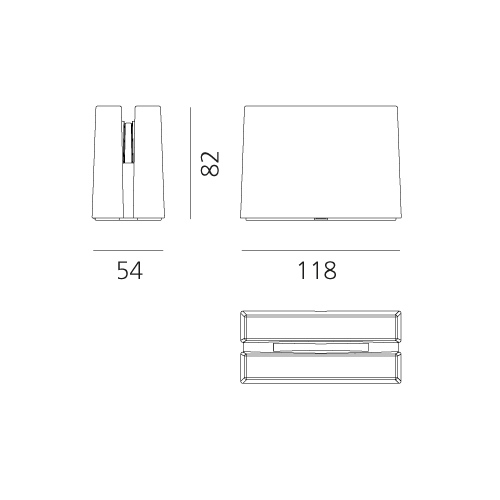

Silhouette
  • Walking-Graphic-sil.jpg
Instructions
  • Y513001122D FOGLIO ISTRUZ ANTARKTIKOS.pdf
IES Europe
  • T4521030.IES
IES USA
  • T4521030.IES
LDT File
  • T4521030.LDT
LDT PDF
  • T4521030.PDF
FEATURES
  • Product Code: T4521030
  • Colour: Grey/white RAL 9002
  • Installation: Ceiling, Wall, Floor
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • design by: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 3W
  • Delivered lumen output: 20lm
  • CRI: 80
DIMENSIONS
  • Length: 117 mm
  • Width: 52 mm
  • Height: 81 mm
  • Impact Resistance: IK06
Notes

Driver supplied separately.

Accessories
Driver 25W - 100-277 Vac - 12Vdc - 148x40x32 (LxWxH) - IP67
DV1055
Driver 40W - 100-277 Vac - 12Vdc - 163x43x32 (LxWxH) - IP67
DV1056
Driver 100W - 100-277 Vac - 12Vdc - 140x63x32 (LxWxH) - IP67
DV1057
Driver 150W - 100-277 Vac - 12Vdc - 228x68x39 (LxWxH) - IP67
DV1043
Dimmer DMX - 12-24 Vdc 12-24 pwm - 88x54x25 (LxWxH) - IP20
DV1059
Dimmer DALI - 12-24 Vdc 12-24 pwm - 88x54x25 (LxWxH) - IP20
DV1052
