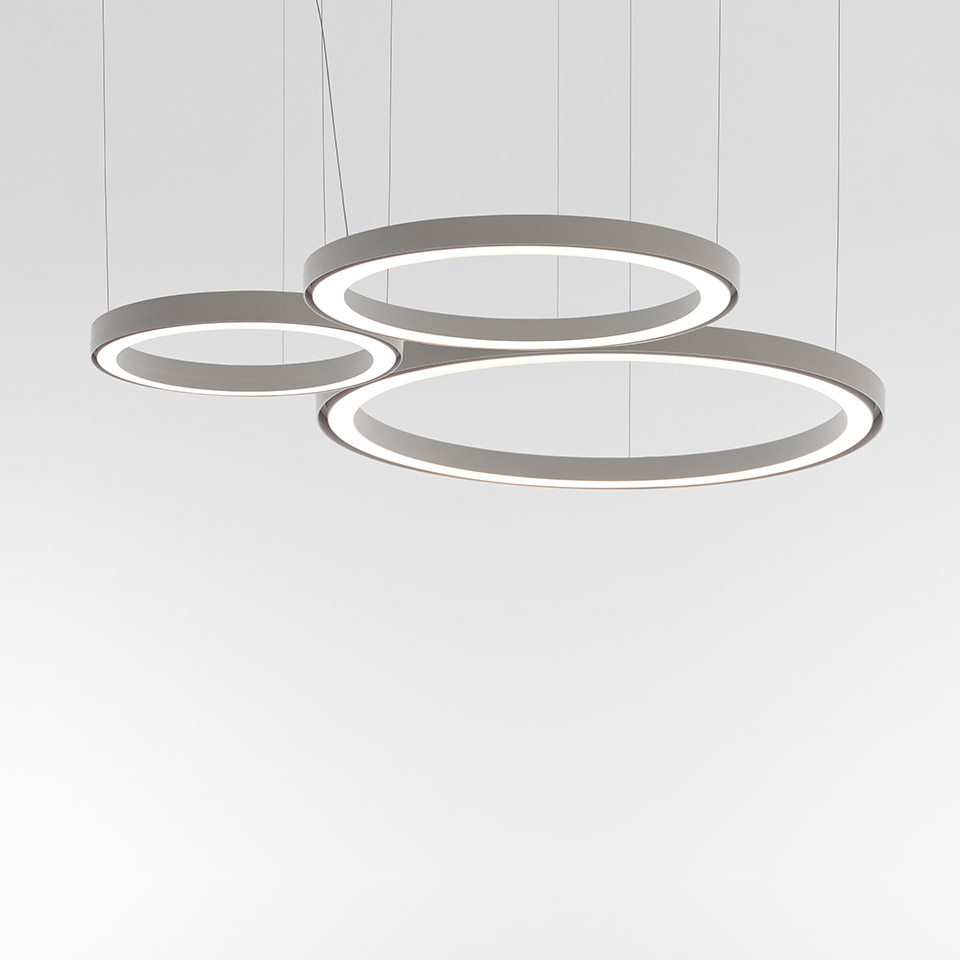

Ripple - Cluster - APP Compatible

IP20 Dimmerable:

Downloadable files

3D Model
  • Ripple cluster.3ds
  • Ripple cluster.stp
Silhouette
  • Ripple-Cluster.jpg
Instructions
  • Y513001306A_Ripple_Cluster_DEF.PDF
  • Y513001532A FOGLIO ISTRUZ RIPPLE ACCESSORY.pdf
3D BIM Revit
  • Artemide Ripple EN.zip
  • Artemide Ripple EN_Low Version.zip
IES Europe
  • 2063010APP.IES
IES USA
  • 2063010APP.IES
LDT File
  • 2063010APP.LDT
LDT PDF
  • 2063010APP.PDF
FEATURES
  • Product Code: 2063010APP
  • Colour: White
  • Installation: Suspension
  • Material: Heat-conducting moulded plastic
  • Series: Design Collection
  • Environment: Indoor
  • design by: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 89W
  • Delivered lumen output: 5806lm
  • CCT: 3000K
  • Efficiency: 50%
  • Efficacy: 65.23lm/W
  • CRI: 90

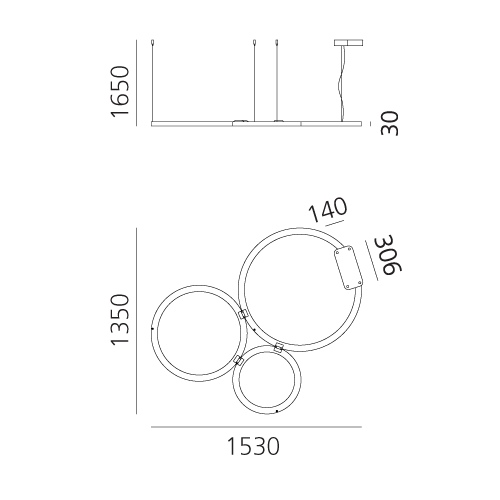

DIMENSIONS
  • Length: 1530 mm
  • Width: 1350 mm
  • Height: 30 mm
  • Base Length: 306 mm
  • Base Width: 140 mm
  • Max Height from ceiling: 1650 mm
Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Acoustic Diffuser Ø500mm - h200mm
2072120A
Acoustic Diffuser Ø500mm - h600mm
2072220A
Acoustic Diffuser Ø500mm - h400mm
2072020A
Acoustic Diffuser Ø700mm - h200mm
2073120A
Acoustic Diffuser Ø700mm - h400mm
2073020A
Acoustic Diffuser Ø700mm - h600mm
2073220A
Acoustic Diffuser Ø900mm - h400mm
2074020A
Acoustic Diffuser Ø900mm - h200mm
2074120A
Acoustic Diffuser Ø900mm - h600mm
2074220A
