Discovery Space Rectangular - White Violet Integralis - Bronze - App Compatible

IP20 Dimmerable:

Downloadable files

3D Model
  • Discovery-Space-Rectangular.3ds
  • Discovery-Space-Rectangular.stp
Silhouette

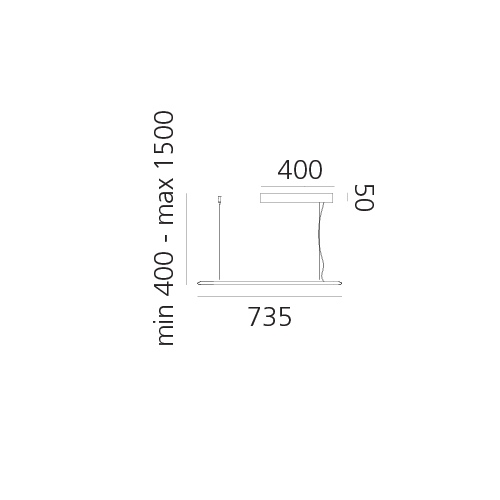

  • Sil Discovery-Space-Rectangular-Horizontal.jpg

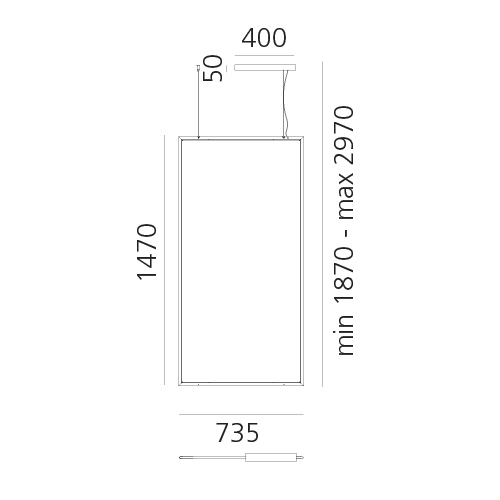

  • Sil-Discovery-Space-Rectangular-Vertical.jpg
Instructions
  • Y513001355A-Discovery Space Integralis®.pdf
3D BIM Revit
  • Artemide Discovery Space EN.rfa
  • Artemide Discovery Space EN_Low Version.zip
FEATURES
  • Product Code: 2002060IN1APP
  • Colour: Bronze
  • Installation: Suspension
  • Material: Technopolymer, aluminium
  • Series: Design Collection
  • Environment: Indoor
  • design by: Ernesto Gismondi
LUMINAIRE
DAY MODE
  • Watt: 63W
  • Voltage: 220-240V
  • Delivered lumen output: 2778lm
  • Radiant Flux: 1686mW
  • CCT: 2700K
  • Efficacy: 44lm/W
  • CRI: 80
  • Dimmable Typology: APP
NIGHT MODE
  • Watt: 63W
  • Voltage: 220-240V
  • Delivered lumen output: 29lm
  • Radiant Flux: 5109 mW
  • Dimmable Typology: APP
DIMENSIONS
  • Length: 735 mm
  • Width: 17 mm
  • Height: 1470 mm
  • Max Height from ceiling: 2970 mm
SOURCES INCLUDED
  • Category: Dual Channel LED
  • Number: 1
  • CRI: 80
  • Color Tolerance: 3SDCM
  • Channel 1 Service Life: L70 B50 60000h
  • Channel 2 Service Life: L70 B50 20000h
Accessories
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Download all Data sheet PDF
