Vector Wall 40 - With Switch - 3000K - 14° - Black

IP20

Downloadable files

Silhouette
  • Vector-Wall-40.jpg
Instructions
  • Y513001610B F_IS VECTOR WALL.pdf
IES Europe
  • BQ80104+AP91200.IES
  • BQ80104+AP91300.IES
  • BQ80104+AP91400.IES
  • BQ80104.IES
IES USA
  • BQ80104+AP91200.IES
  • BQ80104+AP91300.IES
  • BQ80104+AP91400.IES
  • BQ80104.IES
LDT File
  • BQ80104+AP91200.LDT
  • BQ80104+AP91300.LDT
  • BQ80104+AP91400.LDT
  • BQ80104.LDT
LDT PDF
  • BQ80104+AP91200.PDF
  • BQ80104+AP91300.PDF
  • BQ80104+AP91400.PDF
  • BQ80104.PDF
FEATURES
  • Product Code: BQ80104
  • Colour: Black
  • Installation: Wall
  • Material: Aluminum
  • Series: Architectural Indoor
  • design by: Carlotta de Bevilacqua
LUMINAIRE
  • Watt: 8,5W
  • Delivered lumen output: 463lm
  • CCT: 3000K
  • Efficiency: 81%
  • Efficacy: 57.83lm/W
  • CRI: 90

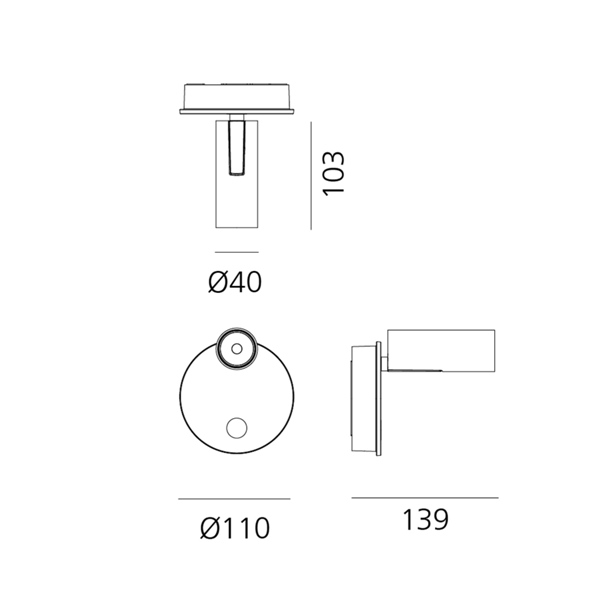

DIMENSIONS
  • Height: 139 mm
  • Diameter: 40 mm
  • Base Diameter: 110 mm
  • Inclination: 90
  • Rotation: 360°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Color Tolerance: MacAdam 2SDCM
  • Service Life: L70 (9K) = 50000h
Download all Data sheet PDF
