Nur Mini Gloss - Ceiling - Black

IP40 Dimmerable:

Downloadable files

2D Model
  • Nur_Gloss_mini_soffitto.dwg
  • Nur_Gloss_mini_soffitto.dxf
3D Model
  • Nur_Gloss_mini_soffitto.3ds
  • Nur_Gloss_mini_soffitto.stp
Silhouette
  • Nur-Mini-Gloss-Ceiling.jpg
Instructions
  • Y503001414E F_IS NUR MINI-MINI GLOSS CEILING.pdf
IES Europe
  • A245510.IES
IES USA
  • A245510.IES
LDT File
  • A245510.LDT
LDT PDF
  • A245510.PDF
FEATURES
  • Product Code: A245510
  • Colour: Black
  • Installation: Ceiling
  • Material: Aluminium, polycarbonate
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Residential
  • Emission: Direct/indirect
  • design by: Ernesto Gismondi
LUMINAIRE *
  • Watt: 21W
  • Voltage: 220V-240V
  • Delivered lumen output: 1013lm
  • Efficiency: 41%
  • Efficacy: 48.24lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

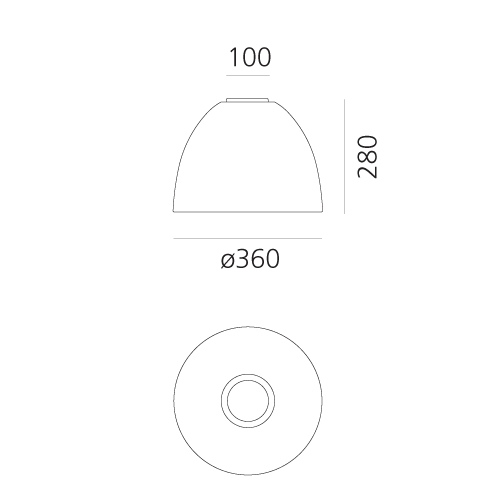

DIMENSIONS
  • Height: 280 mm
  • Diameter: 360 mm
  • Base Diameter: 100 mm
  • Impact Resistance: N/D
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: 21W
  • Socket: E27
Notes

Added to the direct emission is an indirect emission that produces a halo of decorative light on the ceiling. All the versions are encased in a diffuser at the bottom.

Download all Data sheet PDF
