Tizio LED

IP20

Downloadable files

2D Model
  • Tizio_Led.dwg
  • Tizio_Led.dxf
3D Model
  • Tizio_Led.3ds
  • Tizio_Led.stp
Silhouette
  • Tizio_Led.jpg
Instructions
  • Y503100009A tizio supporto terra.pdf
  • Y513000902A FOGLIO ISTR TIZIO LED NEW.pdf
IES Europe
  • A009210.IES
IES USA
  • A009210.IES
LDT File
  • A009210.LDT
LDT PDF
  • A009210.PDF
FEATURES
  • Product Code: A009210
  • Colour: Black
  • Installation: Table
  • Material: aluminium, technopolymer
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality, Office, Residential
  • Emission: Direct Adjustable
  • design by: Richard Sapper
LUMINAIRE
  • Trasformer availability: Integrated
  • Watt: 8W
  • Voltage: 220V-240V
  • Delivered lumen output: 468lm
  • CCT: 3000K
  • Efficiency: 61%
  • Efficacy: 58.49lm/W
  • CRI: 90
  • Dimmer Typology: Microswitch Dimmer

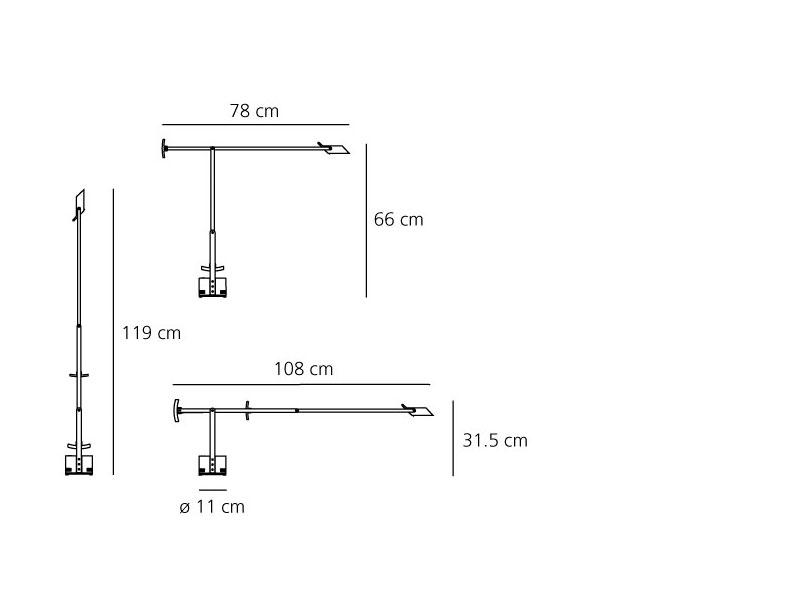

DIMENSIONS
  • Length: 780 mm
  • Height: 660 mm
  • Base Diameter: 110 mm
  • Max Extension Height: 1190 mm
  • Max Extension Length: 1080 mm
  • Inclination: -42+42
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 6.75W
  • Delivered lumen output: 764lm
  • Color temperature (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 113lm/W
  • Service Life: 118000-L90
Accessories
TIZIO NERA SUPPORTO TERRA
A087700
