Cuneo Wall/Floor Gray/white

IP65

Downloadable files

2D Model
  • Cuneo.dwg
  • Cuneo.dxf
3D Model
  • Cuneo.3ds
  • Cuneo.stp
Silhouette
  • Cuneo.jpg
Instructions
  • Y503001904C--FOGLIO ISTRUZ. CUNEO FIN. 0.pdf
DiaLux ULD File
  • T082900.uld
IES Europe
  • T082700.IES
IES USA
  • T082700.IES
LDT File
  • T082700.LDT
LDT PDF
  • T082700.PDF
LDT Image

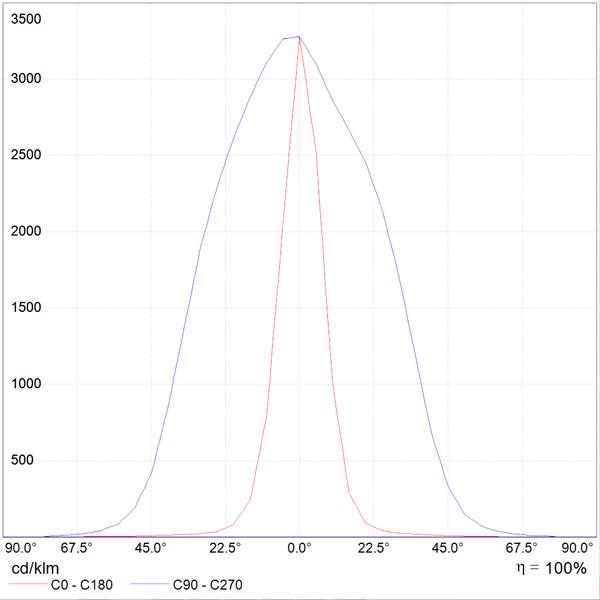

  • Cartesian diagram

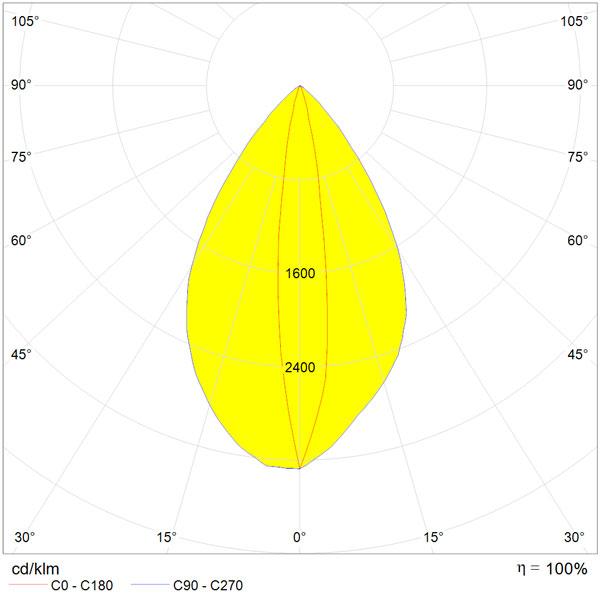

  • Polar curve
Other
  • T082900.PDF
FEATURES
  • Product Code: T082700
  • Colour: Gray/white
  • Installation: Floor, Wall
  • Material: Aluminum, metacrylate
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Area contract: Outdoor, Residential
  • Emission: Direct/indirect
  • design by: Klaus Begasse
LUMINAIRE
  • Watt: 15W
  • Voltage: 220V-240V
  • Delivered lumen output: 1022lm
  • CCT: 3000K
  • Efficiency: 64%
  • Efficacy: 68.11lm/W
  • CRI: 80

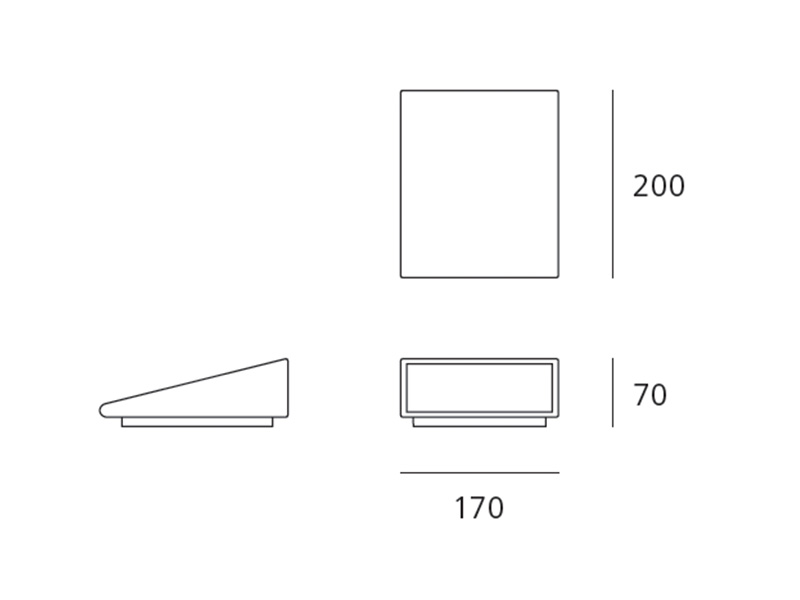

DIMENSIONS
  • Length: 200 mm
  • Width: 170 mm
  • Height: 70 mm
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 12W
  • Delivered lumen output: 1588lm
  • Color temperature (K): 3000K
  • CRI: 80
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70(6K)=36000h
Download all Data sheet PDF
