Alphabet of light linear 180 suspension - App Compatible

IP20 Dimmable:

Downloadable files

2D Model
  • Alphabet of light linear suspension 180.dwg
  • Alphabet of light linear suspension 180.dxf
3D Model
  • Alphabet of light linear suspension 180.3ds
  • Alphabet of light linear suspension 180.stp
Silhouette
  • Alphabet of Light linear 180.jpg
Instructions
  • Y513000822--FOGLIO ISTRUZ. ALPHABET LINE SOSP.pdf
  • Y513001035A-Artemide APP.pdf
  • Y513001294A FOGLIO ISTRUZ KIT PROLUNGA CAVI ALIM-CAVI SOSPENSIONE AOL LI....pdf
3D BIM Revit
  • Artemide AoL Linear Circular EN.zip
  • Artemide AoL Linear Circular EN_Low Version.zip
DiaLux ULD File
  • 1205000APP.uld
IES Europe
  • 1205000APP.IES
IES USA
  • 1205000APP.IES
LDT File
  • 1205000APP.LDT
LDT PDF
  • 1205000APP.PDF
CARACTÈRISTIQUES
  • Code Produit : 1205000APP
  • Couleur: Blanc
  • Installation: Suspension
  • Matériaux: Support en aluminium, diffuseur en technopolymère opale.
  • Séries: Design Collection
  • Environnement: Indoor
  • Emission: Diffused
  • dessiné par: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 39W
  • Tension: 220-240V
  • Flux Lumineux (lm): 5226lm
  • CCT: 3000K
  • Efficiency: 81%
  • Efficacy: 134.00lm/W
  • CRI: 90
  • Dimmable Typology: Push & APP

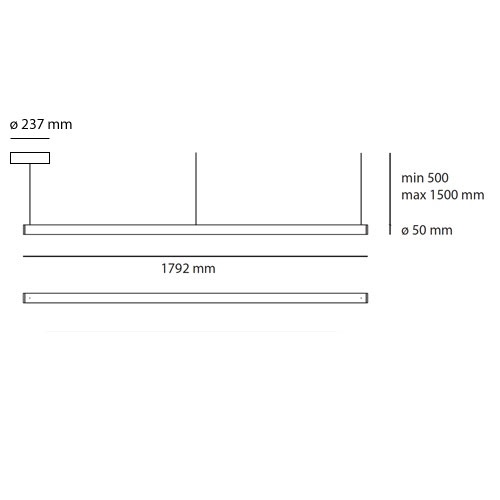

DIMENSIONS
  • Longueur : 1790 mm
  • Hauteur: 50 mm
  • Hauteur max. du plafond: 1500 mm
  • Test au fil incandescent: 650°
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70 (10K) 60000h
Remarques

Patent Pending MI102016000025996.
Constant current SELV.

ACCESSOIRES
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
4.5 m extension feeding cable + 3 suspension wires L=6m for AoL linear 120/180/240 and AoL circular Ø90
1209000A
Téléchargez tous Fiche technique PDF
