Turn Around - Track - Suspension - Direct + Indirect - Curved Element - R=700mm - α=45°

IP20

Downloadable files

3D Model
  • Track Suspension dir+ind.zip

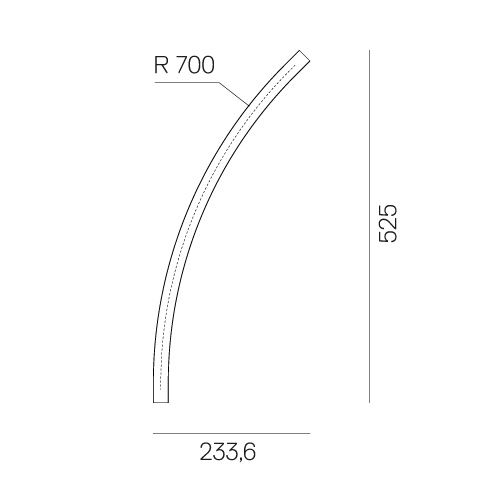

Silhouette
  • Curva-700-45.jpg
Instructions
  • Y513001275C DISACCOPPIATORE DART.pdf
  • Y513001472C_FOGLIO_ISTRUZIONE_TURN_AROUND_PLAFONE.pdf
  • Y513001474C F_IS TURN AROUND SUSPENSION DIRETTA+INDIRETTA.pdf
  • Y513001479A KIT TAGLIO CUSTOM BINARI TURN AROUND.PDF
CARACTÈRISTIQUES
  • Code Produit : TA50222
  • Couleur: Titanium
  • Installation: Suspension, Rail
  • Matériaux: Aluminium
  • Séries: Architectural Indoor
  • dessiné par: Carlotta de Bevilacqua
DIMENSIONS
  • Longueur : 233 mm
  • Largeur: 525 mm
  • Hauteur: 30 mm
Remarques

ACCESSOIRES
Turn Around - Track - Suspension - 320W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Undimmable
TA67001
Turn Around - Track - Suspension - 320W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Dimmable DALI/0-10/1-10/Push
TA67101
0-10, 1-10, Potenziometro, Push, DALI to DALI-Selv Interface
DV1061
Turn Around - Track - Suspension - 320W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Dimmable APP
TA67101APP
Turn Around - Track - Suspension - 240W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Undimmable
TA62301
Turn Around - Track - Suspension - 240W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Dimmable DALI/0-10/1-10/Push
TA62401
Turn Around - Track - Suspension - 240W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Dimmable APP
TA62401APP
Turn Around - Track - Suspension - 150W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Undimmable
TA62101
Turn Around - Track - Suspension - 150W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Dimmable DALI/0-10/1-10/Push
TA62201
Turn Around - Track - Suspension - Fixing Kit (3pcs)
TA90500
Turn Around - Track - Suspension - Kit Electro-Mechanical Joint
TA90300
Turn Around - Track - Suspension - 240W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 396x195x112H - Dimmable DALI/0-10/1-10/Push - Titanium
TA61622
Turn Around - Track - Suspension - 240W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 396x195x112H - Dimmable APP - Titanium
TA61622APP
Turn Around - Track - Suspension - 150W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 351x61x111H - Undimmable - Titanium
TA61122
Turn Around - Track - Suspension - 150W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 351x61x111H - Dimmable DALI/0-10/1-10/Push - Titanium
TA61222
Turn Around - Track - Suspension - 150W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 351x61x111H - Dimmable APP - Titanium
TA61222APP
Turn Around - Track - Suspension - 150W - Suspension power supply kit - 230VAC-48VDC - IP20 - 395x165x107H - Dimmable APP
TA62201APP
Shaping tool: to shape insulating conductor support
TA00000
Turn Around - Track - Suspension - 240W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 396x195x112H - Undimmable - White
TA61301
Locking tool: to lock insulating conductor spacer into aluminum profile
TA00100
Turn Around - Track - Suspension - 240W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 396x195x112H - Dimmable DALI/0-10/1-10/Push - White
TA61401
Turn Around - Track - Suspension - 240W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 396x195x112H - Dimmable APP - White
TA61401APP
Turn Around - Track - Suspension - 150W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 351x61x111H - Undimmable - White
TA60901
Turn Around - Track - Suspension - 150W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 351x61x111H - Dimmable DALI/0-10/1-10/Push - White
TA61001
Turn Around - Track - Suspension - 150W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 351x61x111H - Dimmable APP - White
TA61001APP
Turn Around - Track - Suspension - 240W - Ceiling power supply kit - 230VAC-48VDC - IP20 - 396x195x112H - Undimmable - Titanium
TA61522
Turn Around - Track - Feed end cap - Suspension direct+indirect - Cable 2500mm
TA90800
Turn Around - Track - Recessed/SMD/Suspension - 150W Bare power supply ON-OFF 230VAC-48VDC IP20 - Undimmable (for dimmable version to be combined with “DALI-SELV Interface”) 244x68x38H
TA98100
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Turn Around - Track - Recessed/SMD/Suspension - 320W - Remote box power supply kit - 230VAC-48VDC - IP20 - 313x243x57,5H - Dimmable DALI/0-10/1-10/Push
TA68000
Turn Around - Track - Recessed/SMD/Suspension - 320W - Remote box power supply kit - 230VAC-48VDC - IP20 - 313x243x57,5H - Dimmable APP
TA68000APP
Turn Around - Track - Recessed/SMD/Suspension - 240W - Remote box power supply kit - 230VAC-48VDC - IP20 - 313x243x57,5H - Dimmable DALI/0-10/1-10/Push
TA62500
Turn Around - Track - Recessed/SMD/Suspension - 240W - Remote box power supply kit - 230VAC-48VDC - IP20 - 313x243x57,5H - Dimmable APP
TA62500APP
Turn Around - Track - Recessed/SMD/Suspension - 240W Bare power supply ON-OFF 230VAC-48VDC IP20 - Undimmable (for dimmable version to be combined with “DALI-SELV Interface”) 244x68x38H
TA98000
