A.39 Refractive - Recessed - 1200x300 - 3000K - Undimmable - White
IP
20
Downloadable files
Silhouette
Instructions
Y513001631 FOGLIO ISTRUZIONI A39 600x600.pdf
IES Europe
CD010001+BZ05901.IES
CD010001+BZ05904.IES
IES USA
CD010001+BZ05901.IES
CD010001+BZ05904.IES
LDT File
CD010001+BZ05901.LDT
CD010001+BZ05904.LDT
LDT PDF
CD010001+BZ05901.PDF
CD010001+BZ05904.PDF
CARACTÈRISTIQUES
Code Produit :
CD010001
Couleur:
White
Installation:
Encastré
Séries:
Architectural Indoor
dessiné par:
Carlotta de Bevilacqua
LUMINAIRE
Watt:
35W
Flux Lumineux (lm):
4484lm
CCT:
3000K
Efficiency:
80%
Efficacy:
128.11lm/W
CRI:
90

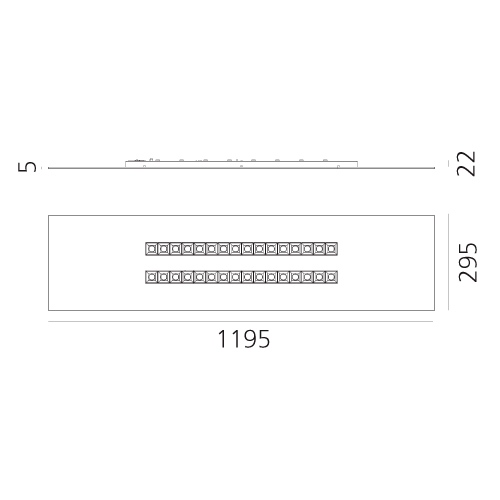

DIMENSIONS
Longueur :
1195 mm
Largeur:
295 mm
Hauteur:
5 mm
Profondeur de la découpe:
22 mm
Remarques
Louvres supplied separately.
220/240Vac 50/60Hz electronic ballast included.
ACCESSOIRES
Recess frame for installation on plasterboard false ceiling - 1200x300mm.
CD910000
Louvers - x8 - White
BZ05901
Louvers - x8 - Black
BZ05904
