A.39 Refractive - Ceiling - 1200x300 - 4000K - Dimmable DALI - White
IP
20
Dimmable:
Downloadable files
Silhouette
Instructions
Y513001631 FOGLIO ISTRUZIONI A39 600x600.pdf
IES Europe
CD111101+BZ05901.IES
CD111101+BZ05904.IES
IES USA
CD111101+BZ05901.IES
CD111101+BZ05904.IES
LDT File
CD111101+BZ05901.LDT
CD111101+BZ05904.LDT
LDT PDF
CD111101+BZ05901.PDF
CD111101+BZ05904.PDF
CARACTÈRISTIQUES
Code Produit :
CD111101
Couleur:
White
Installation:
Plafonnier
Séries:
Architectural Indoor
dessiné par:
Carlotta de Bevilacqua
LUMINAIRE
Watt:
35W
Flux Lumineux (lm):
5311lm
CCT:
4000K
Efficiency:
91%
Efficacy:
151.74lm/W
CRI:
90
Dimmable Typology:
Dali

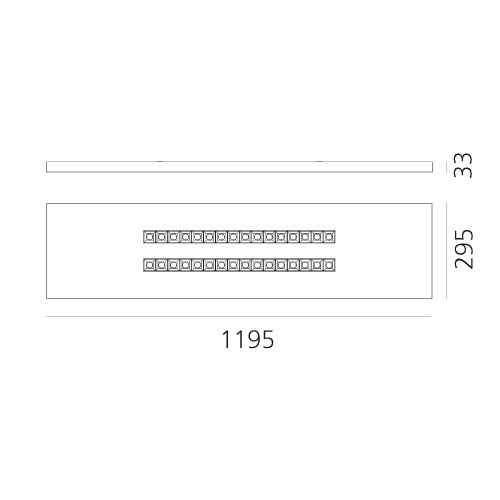

DIMENSIONS
Longueur :
1195 mm
Largeur:
295 mm
Hauteur:
33 mm
Remarques
Louvres supplied separately.
220/240Vac 50/60Hz electronic ballast included.
ACCESSOIRES
Device for switching and controlling Artemide App products. Max N.3 inputs for external push buttons. Max 1m distance. Mains power supply required. To be installed inside flush mounting boxes or junction boxes.
DV1080APP
Louvers - x8 - White
BZ05901
Louvers - x8 - Black
BZ05904
