Alphabet of light system - Suspension - X Joint - 3000K - Not powered

IP20 Dimmable:

Downloadable files

3D Model
  • AoL System X Joint.3ds
  • AoL System X Joint.stp

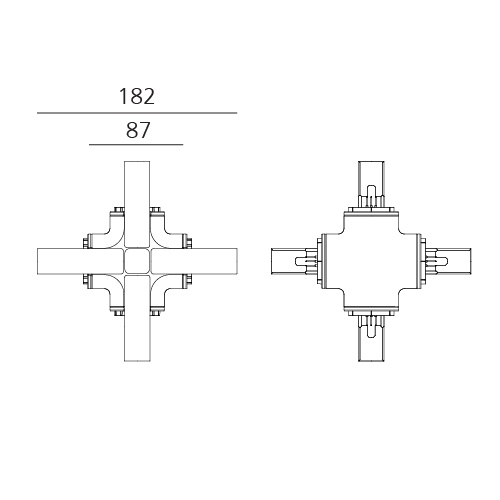

Silhouette
  • AoL giunto X.jpg
Instructions
  • Y513001156C F_IS AOL SYSTEM FIN.0.pdf
  • Y513001158E F_IS AOL SYSTEM SEMIRECESSED.pdf
  • Y513001160D F_IS AOL SYSTEM FIN.0 - APP.pdf
  • Y513001161A FOGLIO ISTR. AOL SYS SR - DRV.pdf
  • Y513001222D F_IS AOL SYSTEM SUSPENSION - DRV REM.pdf
  • Y513001235 FOGLIO ISTR AOL SYS PROLUNGA ALIM-CONV.PDF
  • Y513001517 FOGLIO ISTR AOL SYS DRV S SR 0-10V EUROP.PDF
  • Y513001664A FOGLIO ISTRUZ GIUNTI AOL T - X.pdf
3D BIM Revit
  • Artemide AoL System EN.zip
  • Artemide AoL System EN_Low Version.zip
DiaLux ULD File
  • 2158010AHE.uld
IES Europe
  • 2158010AHE.IES
IES USA
  • 2158010AHE.IES
LDT File
  • 2158010AHE.LDT
LDT PDF
  • 2158010AHE.PDF
Other
  • Alphabet of Light - EPD.pdf
CARACTÈRISTIQUES
  • Code Produit : 2158010AHE
  • Couleur: White
  • Installation: Suspension
  • Matériaux: Support en aluminium, diffuseur en technopolymère opale.
  • Séries: Design Collection, Architectural Indoor
  • Environnement: Indoor
  • dessiné par: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 3W
  • Flux Lumineux (lm): 253lm
  • CCT: 3000K
  • Efficiency: 71%
  • Efficacy: 84.33lm/W
  • CRI: 90
  • Dimmable Typology: APP,Push/DALI
SOURCES INCLUES
  • Catégorie: Led
  • Nombre: 1
  • CRI: 90
  • Color Tolerance: MacAdam 3SDCM
  • Service Life: L70 (10K) 60000h
Remarques

Max 10m per ogni alimentatore (10m in una direzione - 5m in entrambe le direzioni). Rosone a soffitto con alimentatore per ciascun gruppo (a seconda dell'alimentatore scelto il prodotto potrà essere APP Compatible). Dimmerazione DALI possibile per l’intero sistema o gruppo di moduli alimentati dallo stesso driver.

EPD
Registration number: ICMQ – 23438EPD
Date of validity: 23/06/2023 - 12/05/2028
EPDItaly website: www.epditaly.it

Téléchargez tous Fiche technique PDF
