Ego 55 walk-over aluminium 14° 3000K Round

IP65/67

Downloadable files

3D Model
  • Ego 55 Walk-Over Round.3ds
  • Ego 55 Walk-Over Round.stp
Silhouette
  • Ego 55 WO.jpg
Instructions
  • Istruzioni_montaggio
  • Y503500007 Ego 55-90 WO cassaforma.pdf
IES Europe
  • T4031SPW00.IES
IES USA
  • T4031SPW00.IES
LDT File
  • T4031SPW00.LDT
LDT PDF
  • T4031SPW00.PDF
FEATURES
  • Product Code: T4031SPW00
  • Colour: White
  • Material: aluminium
  • Series: Architectural Outdoor
  • Area contract: null, Outdoor
  • design by: Studio Artemide
LUMINAIRE
  • Power Supply: Electronic unintegrated
  • Watt: 1,5W
  • Delivered lumen output: 83lm
  • CCT: 3000K
  • Efficiency: 80%
  • Efficacy: 83.00lm/W
  • CRI: 80

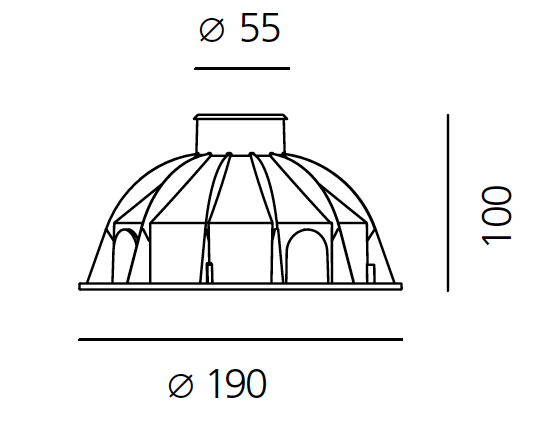

DIMENSIONS
  • Diameter: 55 mm
  • Cutout diameter: 190 mm
  • Cutout shape: Rounded
  • Impact Resistance: IK09
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 1,5W
  • Delivered lumen output: 83lm
  • Color temperature (K): 3000K
  • CRI: 75
  • Color Tolerance: MacAdam 4SDCM
  • Efficacy: 69lm/W
  • Service Life: L70(10K) > 60500h
Notes

Flood opticWide luminous flow suitable for lighting large areas.

Accessories
DRIVER 25W 24V DC
T409996
CASSAFORMA
T409908
DRIVER 90W 24V DC
T409999
Driver - 24W - 24Vdc - IP67 - 185x35x35 (LxWxH) - DALI
DV1041
DRIVER 60W 24V DC
T409998
Download all Data sheet PDF
