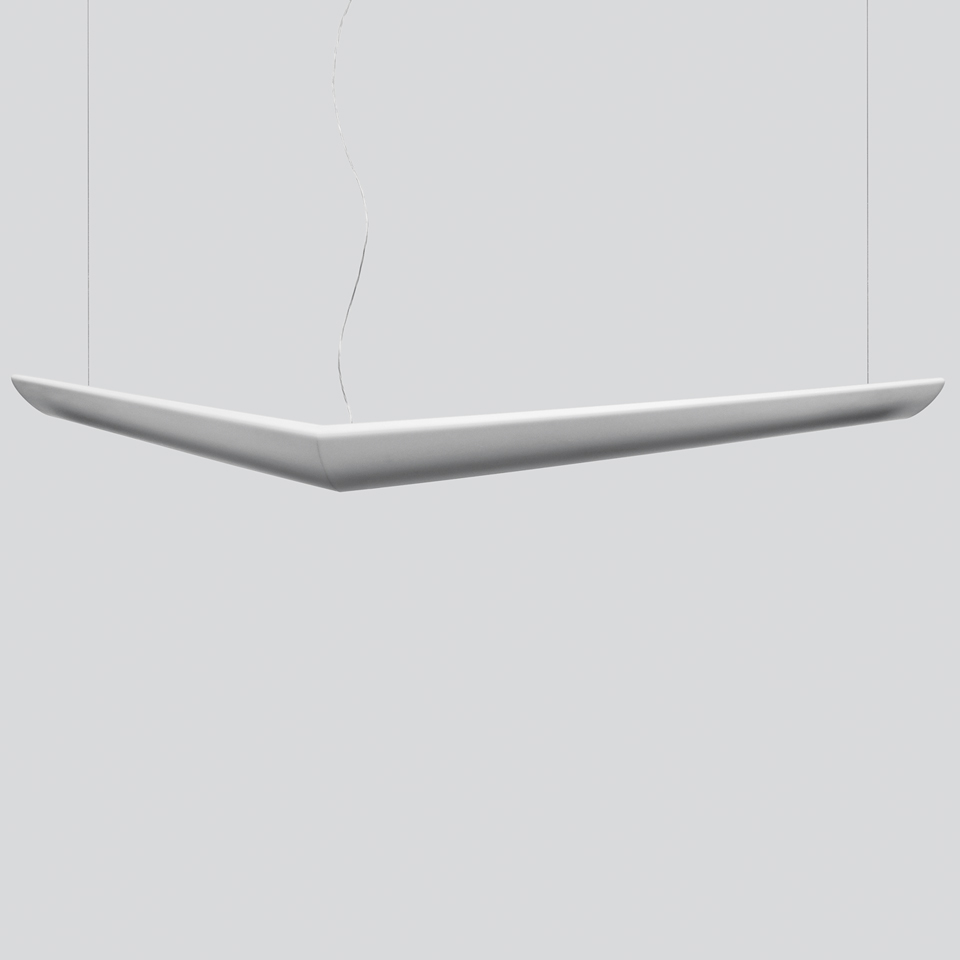

Mouette Asymmetric - Cable length 1900mm - DALI

IP40/20 Dimmerable:

Downloadable files

2D Model
  • Mouette_asimmetrica.dwg
  • Mouette_asimmetrica.dxf
3D Model
  • Mouette_asimmetrica.3ds
  • Mouette_asimmetrica.stp
Silhouette
  • Mouette-Asymmetric-DALI-1900.jpg
Instructions
  • Y513000734_Mouette LED
DiaLux ULD File
  • AK00500.uld
IES Europe
  • AK00500.IES
IES USA
  • AK00500.IES
LDT File
  • AK00500.LDT
LDT PDF
  • AK00500.PDF
FEATURES
  • Product Code: AK00500
  • Colour: White opaline
  • Installation: Suspension
  • Material: Moulded polypropylene, aluminium
  • Series: Architectural Indoor
  • Area contract: Hospitality, Retail, Office, Culture
  • design by: Wilmotte & Industries
LUMINAIRE
  • Power Supply: Electronic integrated
  • Watt: 85W
  • Voltage: 220V-240V
  • Delivered lumen output: 8186lm
  • CCT: 3000K
  • Efficiency: 82%
  • Efficacy: 96.30lm/W
  • CRI: 80
  • Dimmable Typology: Dali
DIMENSIONS
  • Length: 1950 mm
  • Base Width: 74 mm
  • Base Diameter: 424 mm
  • Max Height from ceiling: 1900 mm
  • Weight: kg 6.8
  • Impact Resistance: N.D.
  • Glow Wire Test: 750°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 80W
  • Color temperature (K): 3000K
Notes

Height: 1900mm max.
