Nur Acoustic White Integralis - Grey

IP20 Dimmerable:

Downloadable files

2D Model
  • NUR ACOUSTIC.dwg
3D Model
  • NUR ACOUSTIC.3ds
  • NUR ACOUSTIC.stp
Silhouette
  • Nur-Acoustic.jpg
Instructions
  • Measurements_of_sound_absorption_Artemide_Nur-Acoustic_Annex.pdf
  • Y513001360A NUR 1618 ACOUSTIC LED WHITE INTEGRALIS.pdf
3D BIM Revit
  • Artemide Nur Acoustic.rfa
  • Artemide Nur Acoustic_Low Version.rfa
IES Europe
  • A243700IN0.IES
IES USA
  • A243700IN0.IES
LDT File
  • A243700IN0.LDT
LDT PDF
  • A243700IN0.PDF
FEATURES
  • Product Code: A243700IN0
  • Colour: Grey
  • Installation: Suspension
  • Material: PET, methacrylate, glass
  • Series: Design Collection
  • Environment: Indoor
  • design by: Ernesto Gismondi
LUMINAIRE
DAY MODE
  • Watt: 80W
  • Voltage: 220-240V
  • Delivered lumen output: 6733lm
  • Radiant Flux: 4553mW
  • CCT: 5000K
  • Efficiency: 68%
  • Efficacy: 84.16lm/W
  • CRI: 90
  • Dimmable Typology: Push

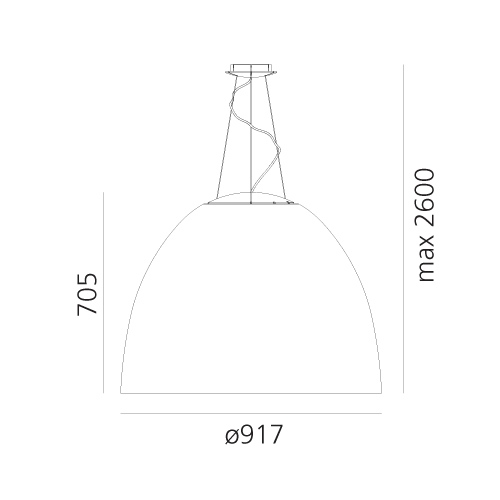

DIMENSIONS
  • Height: 705 mm
  • Diameter: 917 mm
  • Max Height from ceiling: 2600 mm
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Color temperature (K): 5000K
  • CRI: 90
  • Color Tolerance: 3SDCM
  • Service Life: L80 (10K) 55000h
Download all Data sheet PDF
