Nuda 100 Monolateral Gray/white

IP65

Downloadable files

2D Model
  • Nuda.dwg
  • Nuda.dxf
3D Model
  • Nuda.3ds
  • Nuda.stp
Silhouette
  • Nuda floor 100.jpg
Instructions
  • Istruzioni_montaggio_terra
DiaLux ULD File
  • T083800.uld
IES Europe
  • T083800.IES
IES USA
  • T083800.IES
LDT File
  • T083800.LDT
LDT PDF
  • T083800.PDF
LDT Image
  • Fascio luminoso
  • Isolux
  • Polar curve
Other
  • T083800.PDF
FEATURES
  • Product Code: T083800
  • Colour: Gray/white
  • Installation: Floor
  • Material: Methacrylate, painted aluminium
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Emission: Direct
  • design by: Ernesto Gismondi
LUMINAIRE
  • Watt: 14W
  • Voltage: 220V-240 V
  • Delivered lumen output: 563lm
  • CCT: 3000K
  • Efficiency: 43%
  • Efficacy: 40.22lm/W
  • CRI: 80

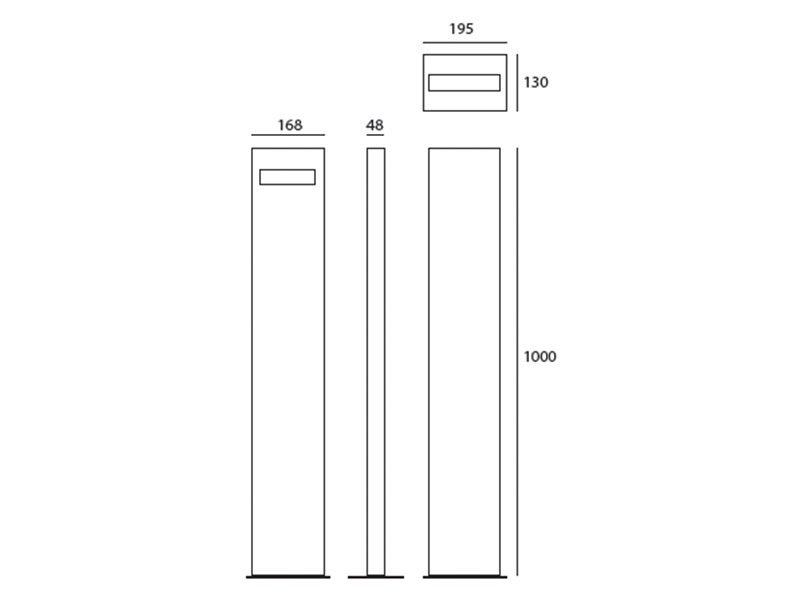

DIMENSIONS
  • Length: 168 mm
  • Width: 48 mm
  • Height: 1000 mm
  • Impact Resistance: IK06
  • Glow Wire Test: 650°
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 17W
  • Delivered lumen output: 515lm
  • Color temperature (K): 3000K
  • CRI: 80
Notes

Floor fixing with ground mounting plate.
