Cefiso 20 - EL (WW) 3000K Gray/white

IP65

Downloadable files

2D Model
  • Cefiso20.dwg
  • Cefiso20.dxf
3D Model
  • Cefiso20.3ds
  • Cefiso20.stp
Silhouette
  • Cefiso20.jpg
Instructions
  • Y513000032F F_IS CEFISO.pdf
DiaLux ULD File
  • T4181ELW00.uld
IES Europe
  • T4181ELW00.IES
IES USA
  • T4181ELW00.IES
LDT File
  • T4181ELW00.LDT
LDT PDF
  • T4181ELW00.PDF
Other
  • T4181ELW00.PDF
FEATURES
  • Product Code: T4181ELW00
  • Colour: Gray/white
  • Installation: Floor, Wall
  • Material: Aluminum, tempered glass, methacrylate
  • Series: Architectural Outdoor
  • Environment: Outdoor
  • Area contract: Outdoor
  • design by: Alessandro Pedretti
LUMINAIRE
  • Watt: 38W
  • Voltage: 220V-240V
  • Delivered lumen output: 2912lm
  • CCT: 3000K
  • Efficiency: 67%
  • Efficacy: 76.63lm/W
  • CRI: 80

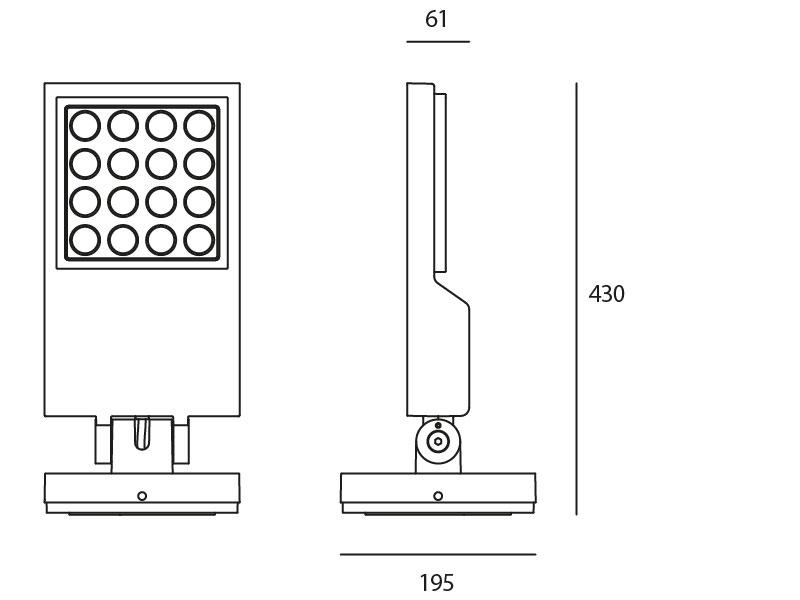

DIMENSIONS
  • Width: 61 mm
  • Height: 430 mm
  • Base Width: 195 mm
  • Impact Resistance: IK10
SOURCES INCLUDED
  • Category: Led
  • Number: 1
  • Watt: 38W
  • Color temperature (K): 3000K
  • CRI: 80 typ
AWARDS

Red dot design award 2012

Download all Data sheet PDF
