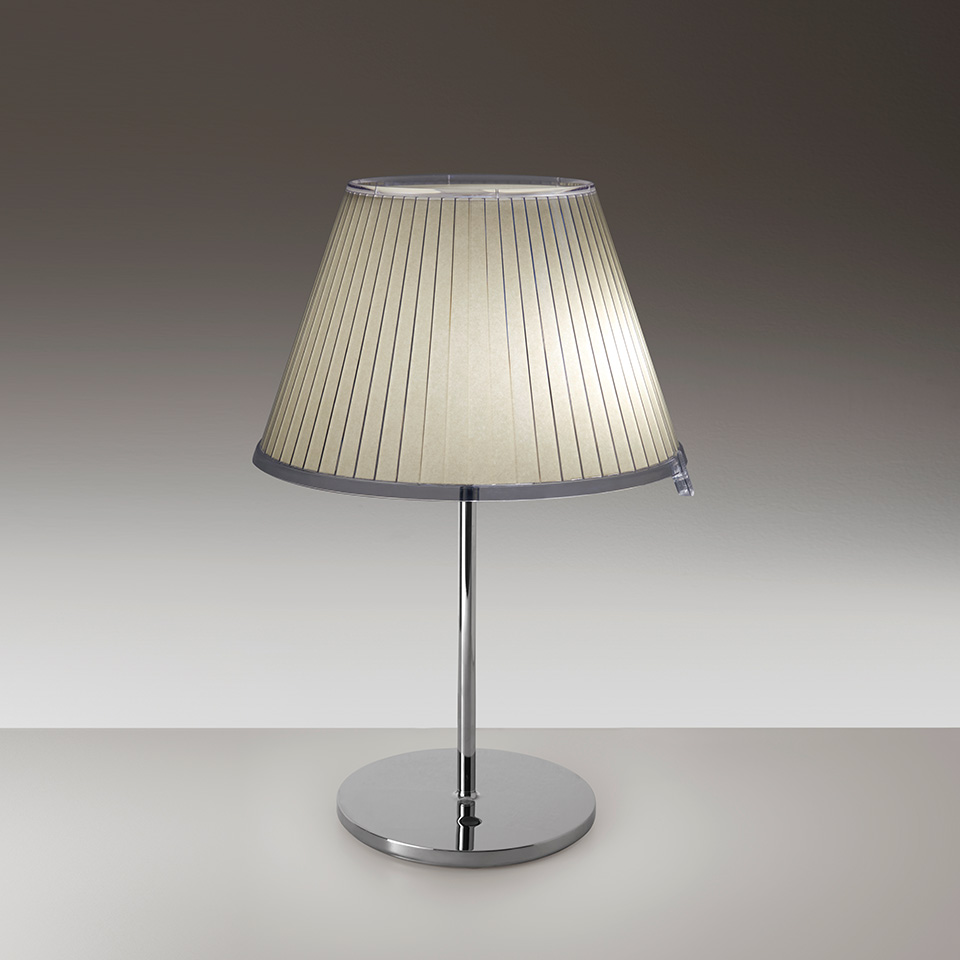

Choose Table - Parchment/Chrome

IP20

Downloadable files

2D Model
  • Choose_tavolo_2D.dwg
  • Choose_tavolo_2D.dxf
3D Model
  • Choose_tavolo_3D.3ds
  • Choose_tavolo_3D.stp
Silhouette
  • Choose Tavolo_SIL
Instructions
  • Y503001093C F_IS CHOOSE TABLE.pdf
IES Europe
  • 1128020A.IES
IES USA
  • 1128020A.IES
LDT File
  • 1128020A.LDT
LDT PDF
  • 1128020A.PDF
FEATURES
  • Product Code: 1128120A
  • Colour: Parchment/Chrome
  • Installation: Table
  • Material: Metal, zamac, polycarbonate, parchment paper
  • Series: Design Collection
  • Environment: Indoor
  • Area contract: Hospitality
  • Emission: Direct Spot
  • design by: Matteo Thun & Partners
LUMINAIRE *
  • Watt: 57W
  • Voltage: 220V-240V
  • Delivered lumen output: 1291lm

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

DIMENSIONS
  • Height: 554 mm
  • Diameter: 358 mm
  • Base Diameter: 230 mm
  • Max Extension Length: 450 mm
  • Inclination: 30
  • Rotation: 350°
  • Impact Resistance: N/D
  • Glow Wire Test: 750°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: 12W
  • Socket: E27
Notes

The diffuser tilts 30° and rotates 350° on its axis.

Download all Data sheet PDF
